Specification | Details |
---|---|

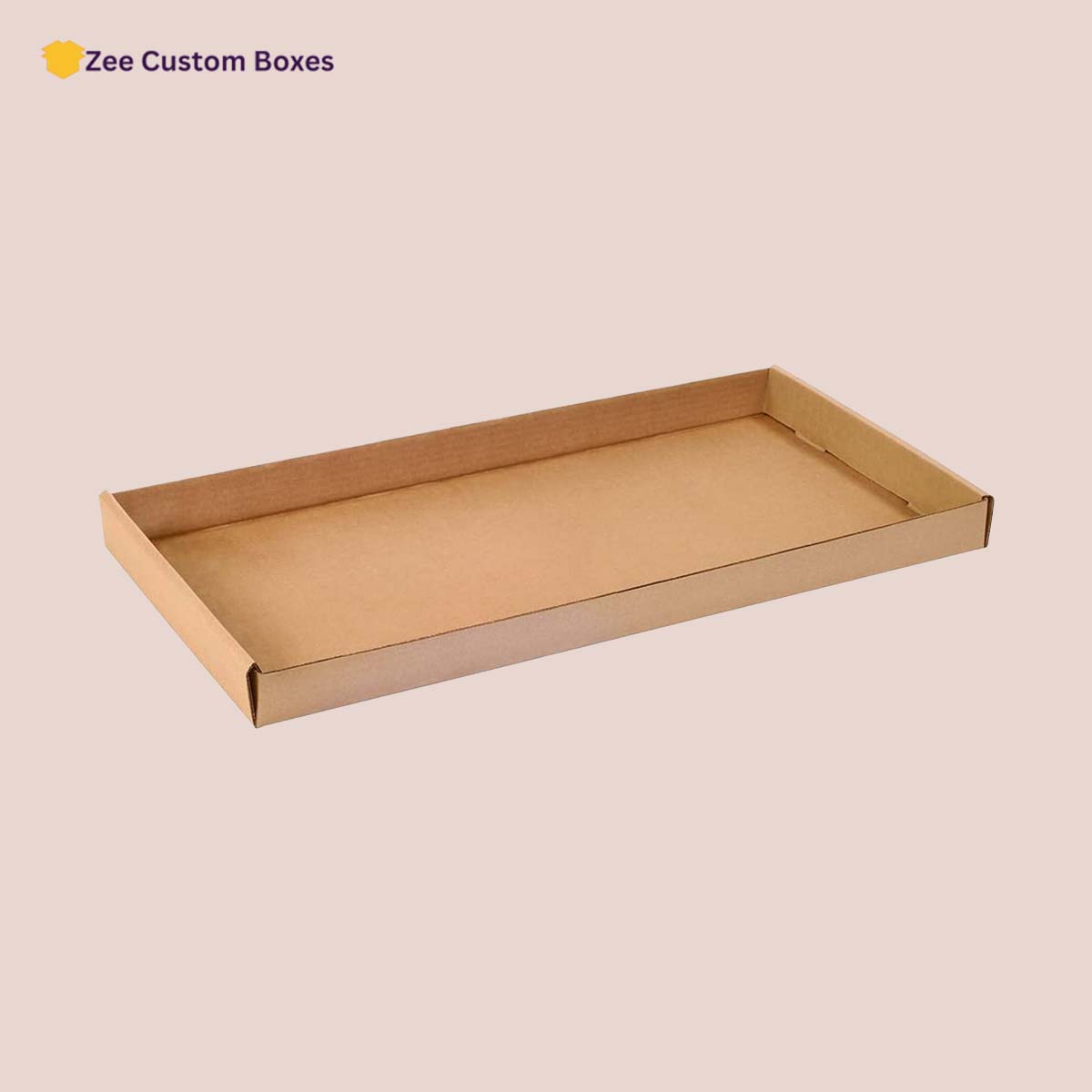

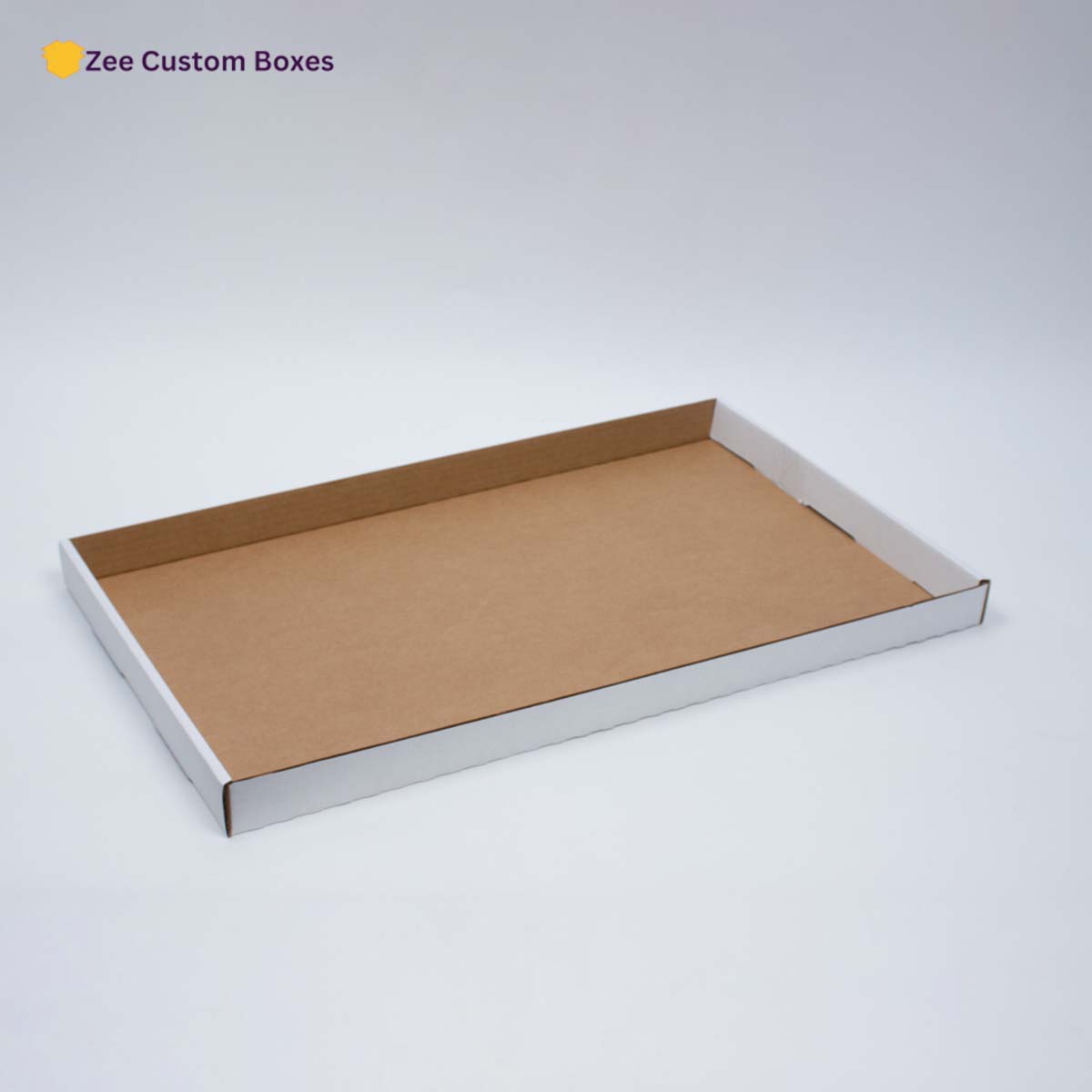

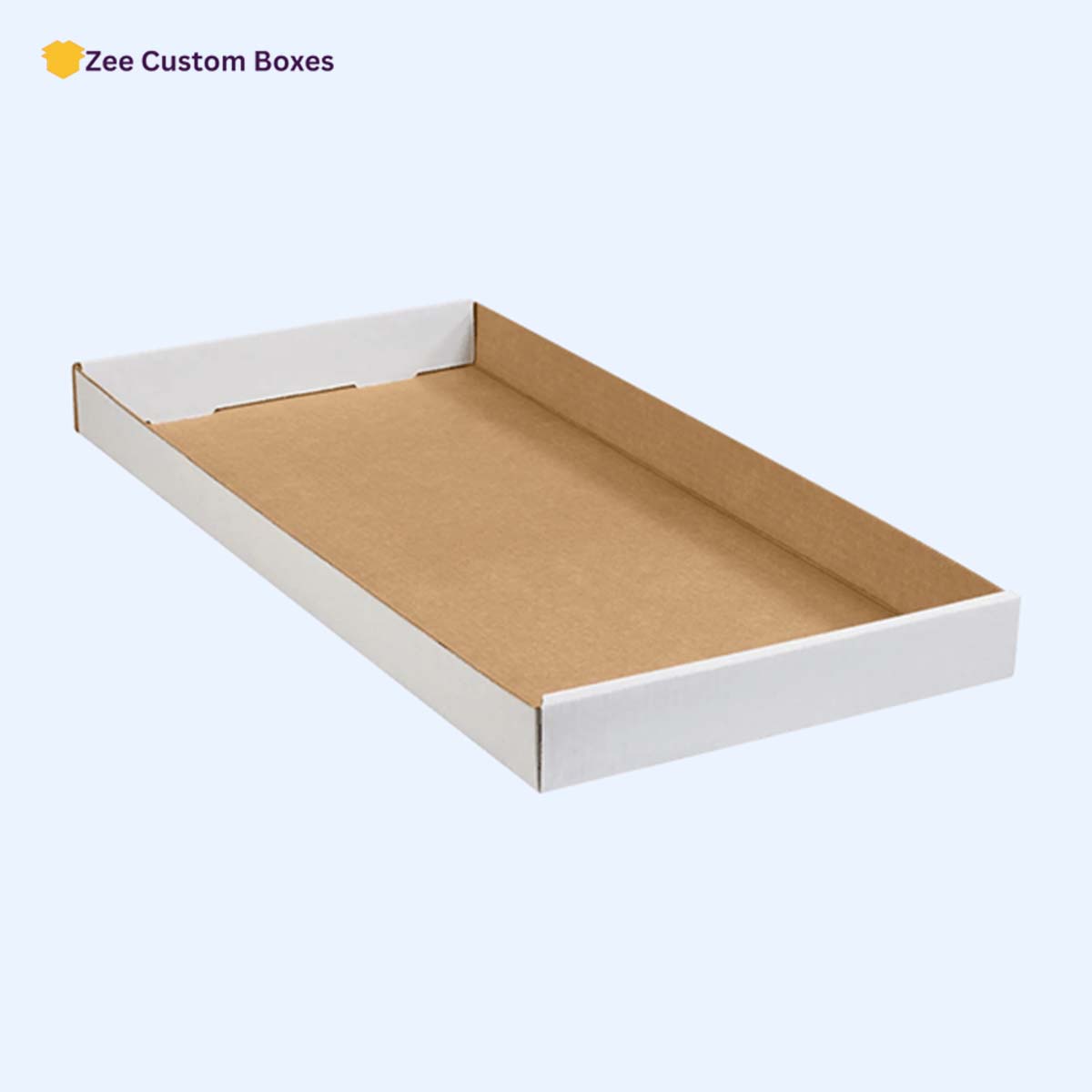

Product Name | Large Cardboard Trays |
Primary Material | Corrugated cardboard – virgin or recycled liner with kraft or white top sheet |
Board Grades Available | B-flute (3 mm), C-flute (4 mm), BC double-wall (6–7 mm) |
Paper Weight Range | 125 gsm to 300 gsm liners; 125–200 gsm fluting medium |
Wall Thickness | Single-wall: 3–4 mm · Double-wall: 6–7 mm |
Load Capacity | Up to 15 kg (single-wall) or 25 kg (double-wall) when evenly distributed |
Edge Crush Test (ECT) | 32 ECT, 44 ECT, 48 ECT, or custom rating on request |
Tray Styles | Open-top, telescopic, two-piece, die-cut handle, self-locking |
Optional Inserts & Dividers | Corrugated partitions, paperboard sleeves, PET windows |
Size Range | Internal dimensions from 250 mm × 200 mm × 50 mm to 800 mm × 600 mm × 150 mm; bespoke sizes accepted |
Coating / Finish Choices | Gloss, Matte, Spot UV; aqueous or soft-touch varnish on request |
Printing Method | CMYK or Pantone® flexo, digital, or offset up to 6 colours; inside print available |
Colour Accuracy | ΔE ≤ 2 with spectro-controlled proofs |
Reinforcement Options | Double-glued corners, folded rim, extra bottom pad |
Moisture Resistance | Water-repellent WB coating or PE-laminated board available |
Food Contact Compliance | FDA & EU 1935/2004 compliant inks, adhesives, and papers |
Environmental Credentials | 100 % recyclable; FSC®-certified and recycled content grades offered |
Minimum Order Quantity | 100 trays (single size/design) |
Production Lead Time | 7–10 business days after artwork approval |
Expedited Service | 48-hour turnaround for qualifying orders |
Design Support | Free dieline creation, 3D mock-ups, and artwork checks |
Packing for Transit | Bundled flat, strapped, and shipped in double-wall cartons or pallets |
Shipping | Free standard delivery Australia-wide; international freight arranged on request |
Storage Guidance | Keep flat, dry, and out of direct sunlight; ideal RH 50 % ±5 % |
